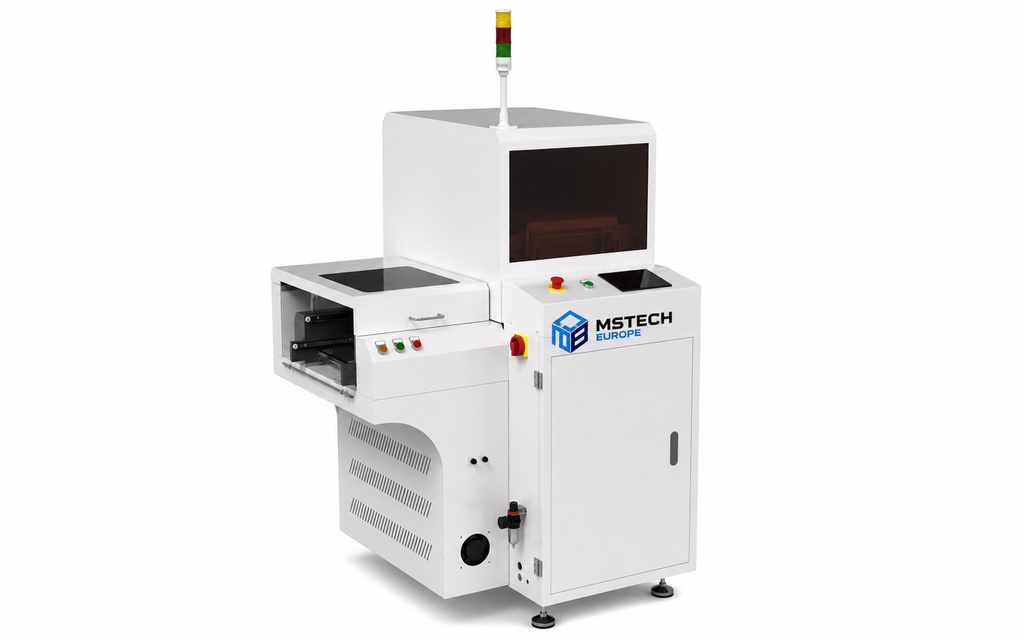

NG Vertical Buffer PCB Max(mm): 500x460

MSTECH Europe
Classic-NGBUF-460 - 20P
SPI/AOI NG/OK vertical buffer, 20 slots; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1150x1100x1700

Application
This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions. This unit is located between SMT machines to improve the working efficiency by buffering.

Features

• PLC program control

• Servo motor system to improve the working efficiency

• Selectable pitch settings

• Tower-light display for machines working status.

• Built-in Rack structure

• Enclosed CE construction to improve the safety level

• Conveyor & rack adjustment by motorized

• Separately driven buffer conveyors

• 20 PCBs storage capacity

• Use the friendly touch screen panel

• SMEMA compatible

• Threshold signal to protect the PCBs in the upstream oven
