Classic-LC15D-460

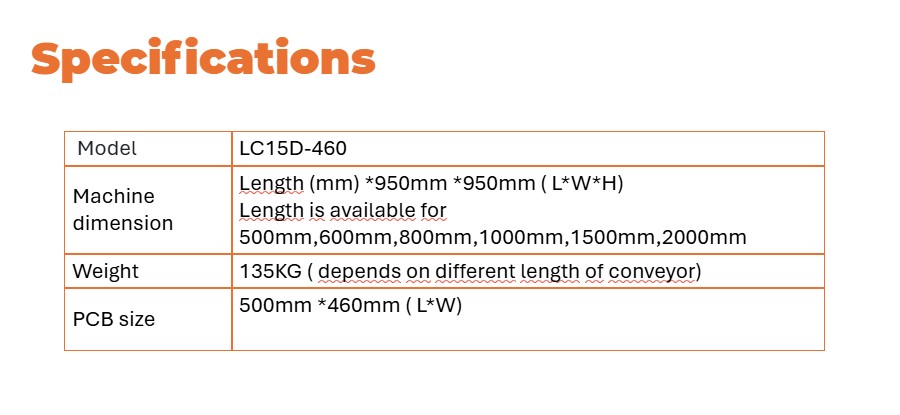

Linking conveyor / inspection conveyor, 1500mm length; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1500x950x1250

Application :

This unit links between SMT machines and cooling down PCB from reflow oven in the SMT line.

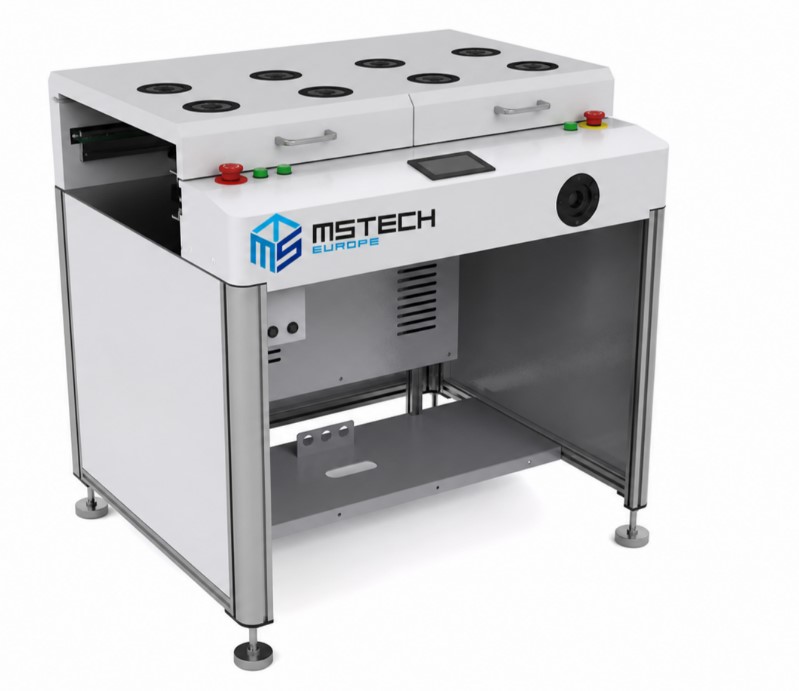

This Cooling conveyor for PCB is available to installed a touch screen controlled cooling fans on top or bottom, the cooling time length is available to setup on the touch screen software.

This cooling conveyor is also available to be customized for different customer requirements.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.

• Cooling fans with high advanced quality on top cover

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• SMEMA compatible

• Cooling time length is available to be setup by timer (optional)

• Conveyor width adjustment automatic by software (optional)
