Bare Board Handling PCB Max(mm): 500x460

MSTECH Europe

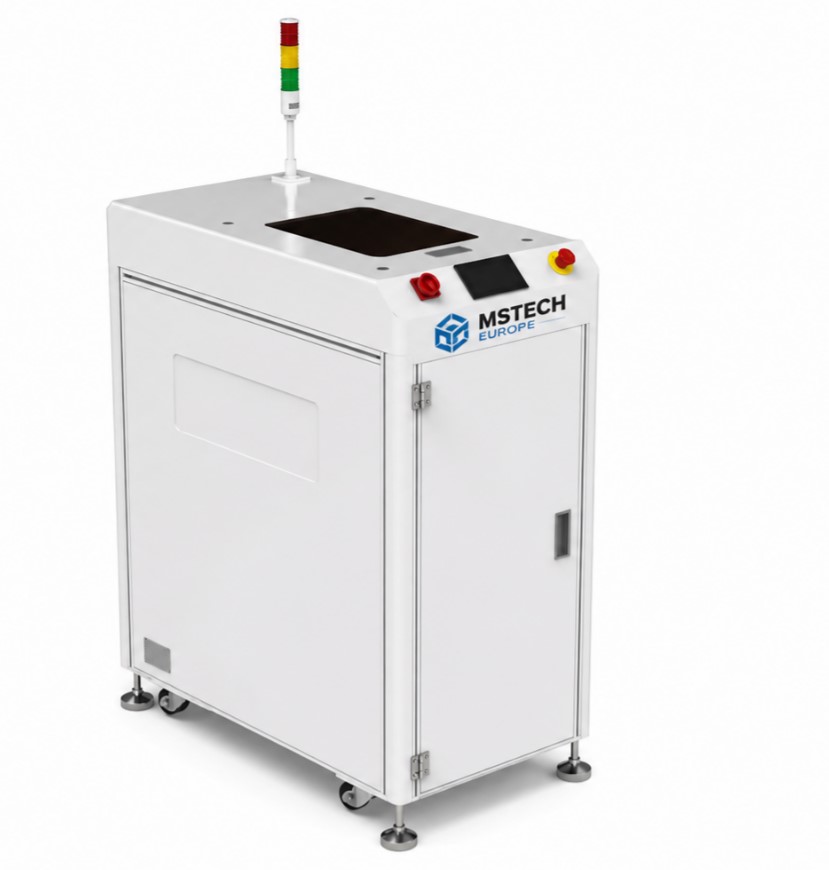

Classic-INV-460

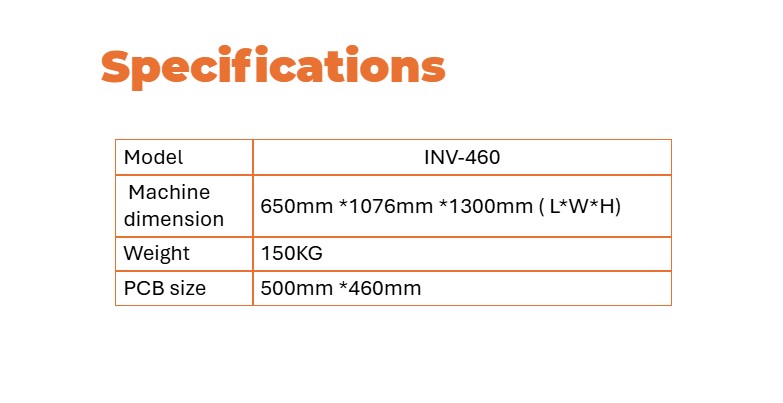

Inverter conveyor for bare boards, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x1076x1300

Application
This unit is used to inverter flip /PCB’s ( 180 °) for double side process.

Features

• Panasonic PLC program control

• By-pass mode, inverter mode selectable

• Pneumatic stopper to keep the PCB in position during inverting

• Motorized conveyor width adjustment (optional).

• LED signal tower

• Buzzer

• Suitable for boards with many components on the bottom side

• Closed –loop stepper motor providing the rotating driving power

• SMEMA compatible
