Inspection Conveyor Max(mm): 500x460

MSTECH Europe

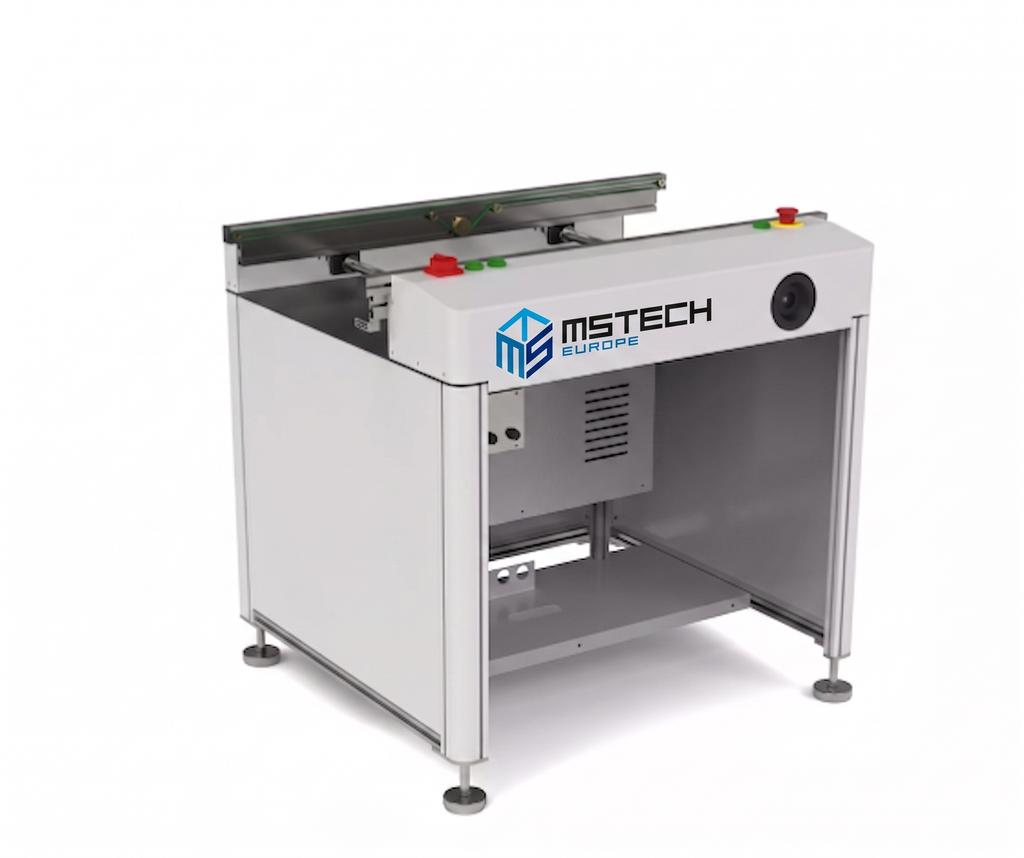

Classic-IC-460 -UV
UV inspection conveyor, 1000mm length; with 2 groups Philips black light; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 1000x950x1250

Application
Using SMEMA interface, this unit successfully links any SMT machine, this system can work on inspection & linking mode.

Features

• Panasonic PLC program control

• By-pass mode, inspection mode selectable

• Conveyor width adjustment by using hand crank.(Standard).

• Center PCB stop position

• Heavy bottom design to prevent shifting

• Conveyor motor is using with stepper motor

• PCB flow direction flows can be customized

• LED light overhead frame (inspection conveyor)

• SMEMA compatible
