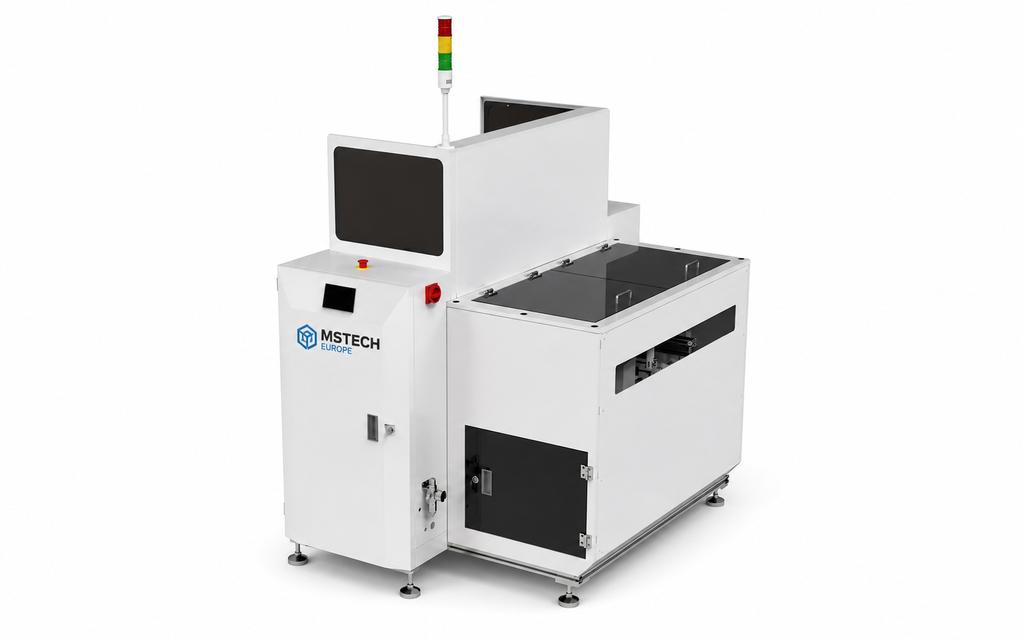

Dual Track Unloader

MSTECH Europe
Classic-DTMMUL-460

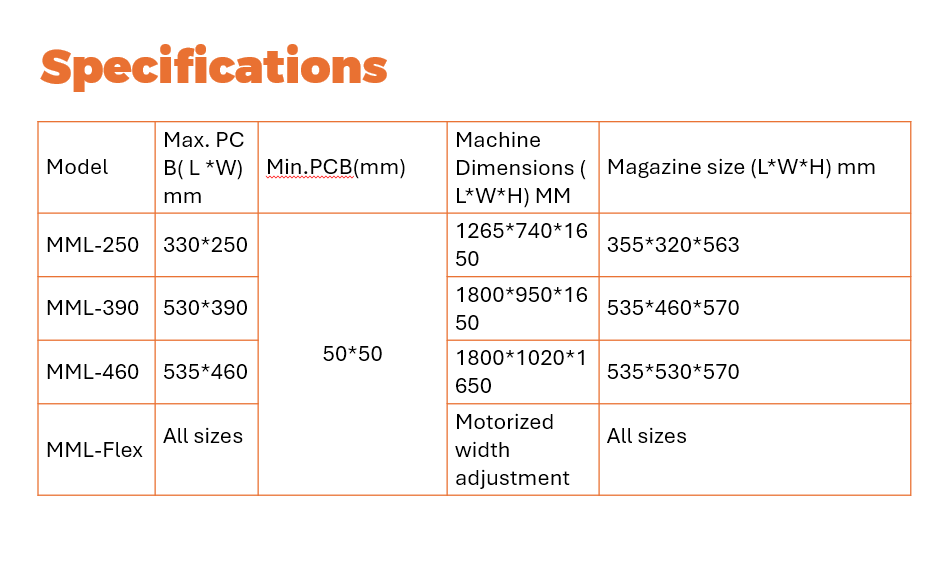

Dual track multi Magazine (mm) unloader NG/OK ready; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

This system is available to separate the No-good boards and OK boards from upstream tester, and introduce the NG boards & OK boards into the corresponding magazines by special shuttle conveyor. This unit can also work as the dual lane unloader for high volume production.

Features

• Efficient management of Good & No good boards from upstream system
• Dual lane high speed unloader function are selectable in the software
• Multi magazine capability to handle total 6 magazines (Optional)
• Panasonic PLC program control
• Selectable pitch settings from 10mm to 80mm;
• Tower-light display for machines working status.
• Flexible platform to suit standard magazines
• Exchangeable magazine from the rear of magazine
• Stepper motorized type pusher to enhance working stability
• Pusher position adjustable to Centre for the boards
• Use the friendly touch screen panel
• Magazine infeed and outfeed are automatically driving by motor on the platform.
