Bare Board Handling PCB Max(mm): 500x460;

MSTECH Europe

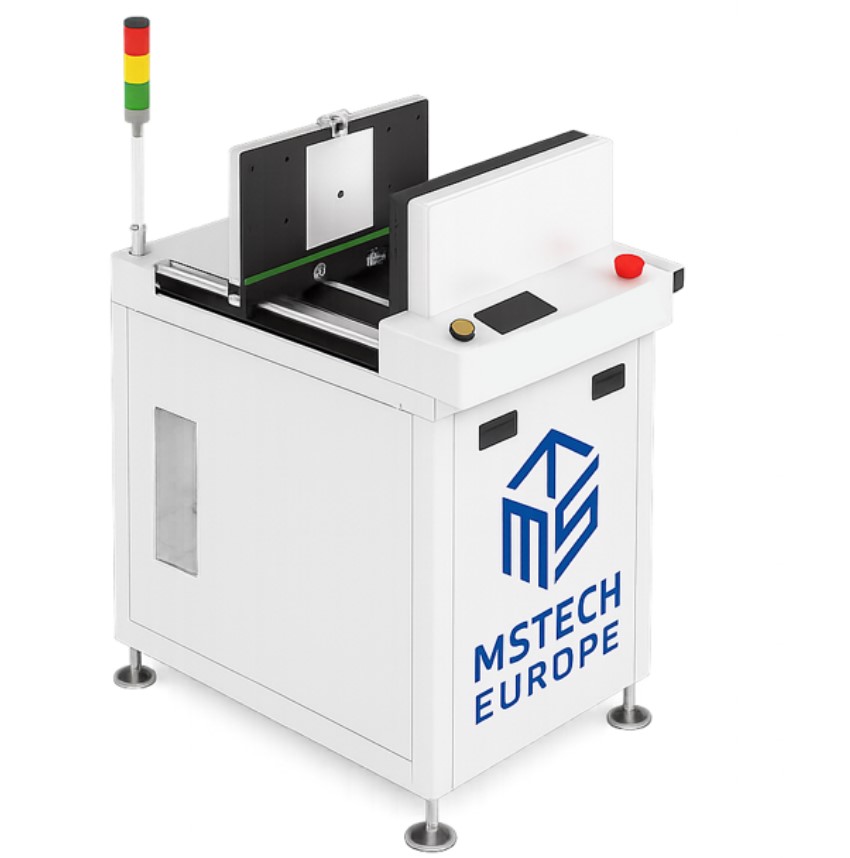

Classic-DL-460

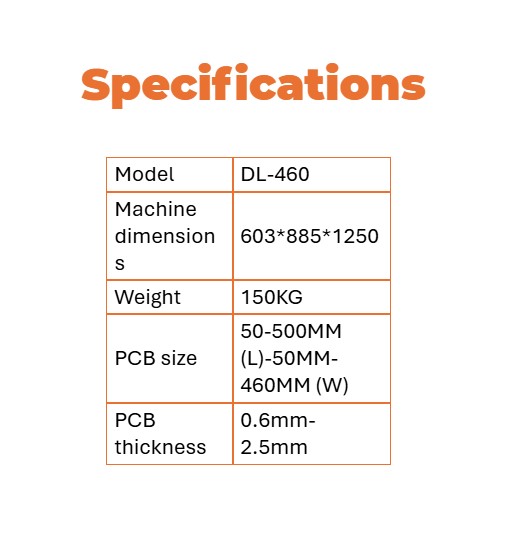

Bare boards loader / destacker, PCB thickness 0.6-2.5mm; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 650x885x1250

Application
This unit is design for loading the bare boards onto the SMT line. Unique separation cams take one PCB from the bottom of the boards stacked, and softly lowering it on the ESD belts to transfer to downstream machine.


Features

• Panasonic PLC program control

• By-pass and Destacker mode are selectable in the software

• Shortest loading cycle time for PCB

• Thickness 0.6 mm PCB available to be handled well

• Uninterrupted PCB charging

• Pre-signal alarm for PCB lower stack heights

• Use the friendly touch screen panel

• Smooth and parallel width adjustment by crank wheel ( Optional: motorized).

• Interlock for all door open to improvement highest safety operation

• SMEMA compatible
