Combined Loader/Unloader PCB Max(mm): 440x330

MSTECH Europe
Classic-CLUL-330

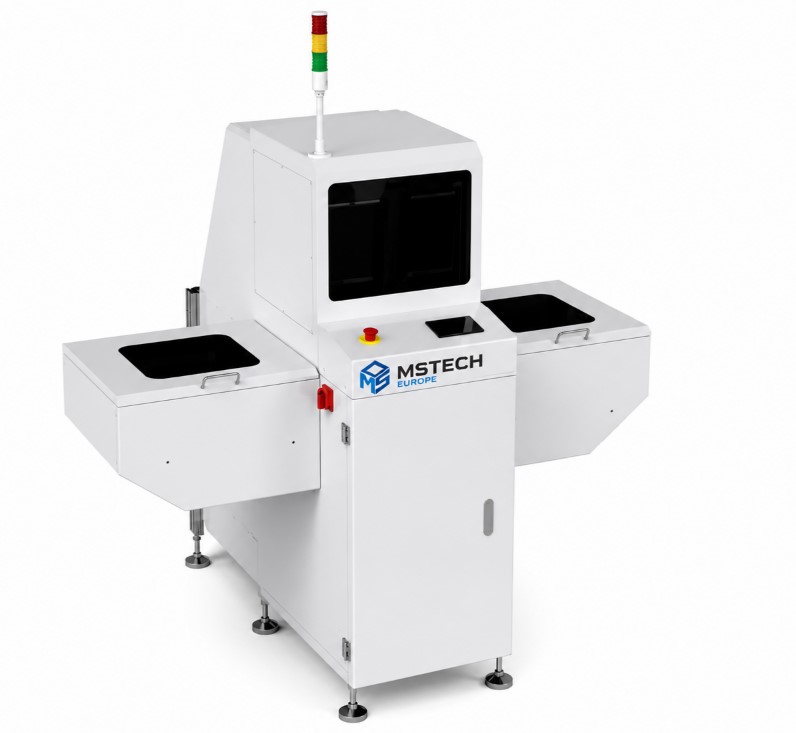

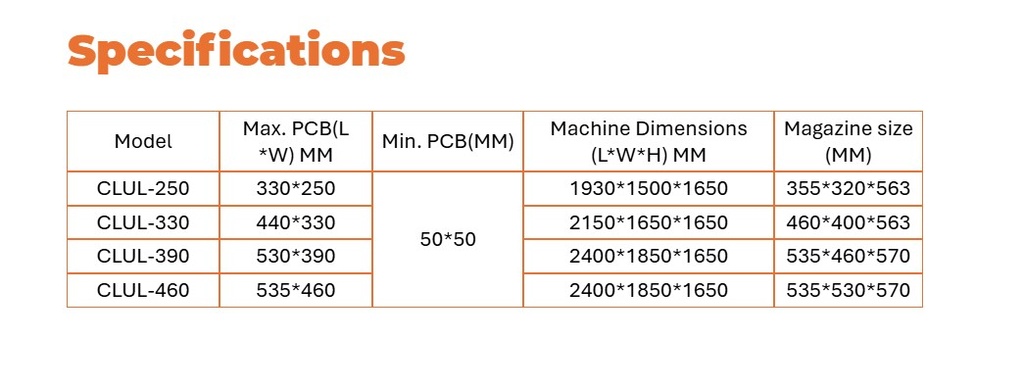

Loader & unloader combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 440x330; PCB Min. (mm): 50x50; Machine Size (mm): 2150x1650x1650; Magazine (mm): 460x400x563

Application
The Multi-Magazine Line Loader & Unloader is designed for loading & unloading of PCBs for SMT lines.

The main operation mode should be like Loader / Unloader at the same side. Like screen printer or AOI with one Loader / Unloader from the left side. It should give the PCB to the screen printer or AOI and then take it back to the magazine to the same position on the magazine and only then move to the next position.

Boards flow : Loading function -> AOI -> Unloading function.
SMEMA: With optional NG OK reject function.

Features

• Panasonic PLC program control

• Loading & Unloading boards from one same side

• Selectable pitch settings from 10mm-80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to connect with any brands of AOI tester in the world

• SMEMA compatible
