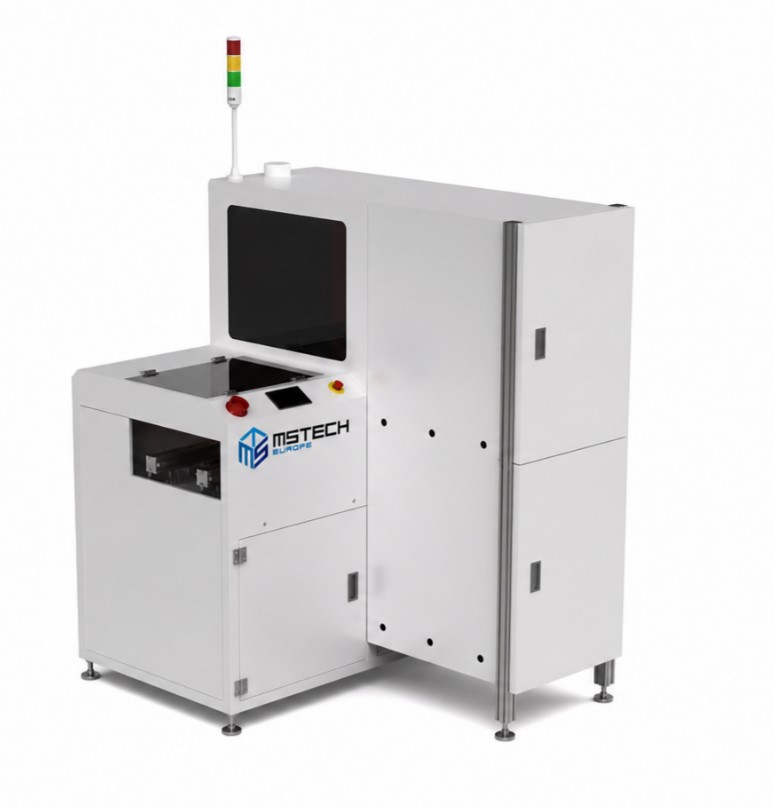

Coating Line Unloader PCB Max(mm): 330x250

MSTECH Europe
Classic-CLU-250

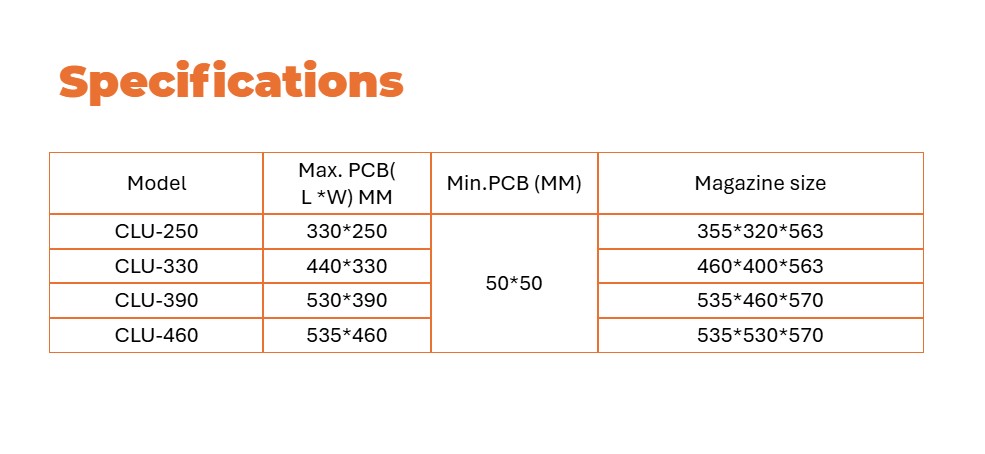

Multi Magazine (mm) unloader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1330x720x1650; Magazine (mm): 355x320x563

Application
This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1. Located at the end of SMT line,collecting the PCB from the line into the magazine.
2. Space save type for the SMT line length.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible
