Combined Loader/Destacker PCB Max(mm): 330x250

MSTECH Europe

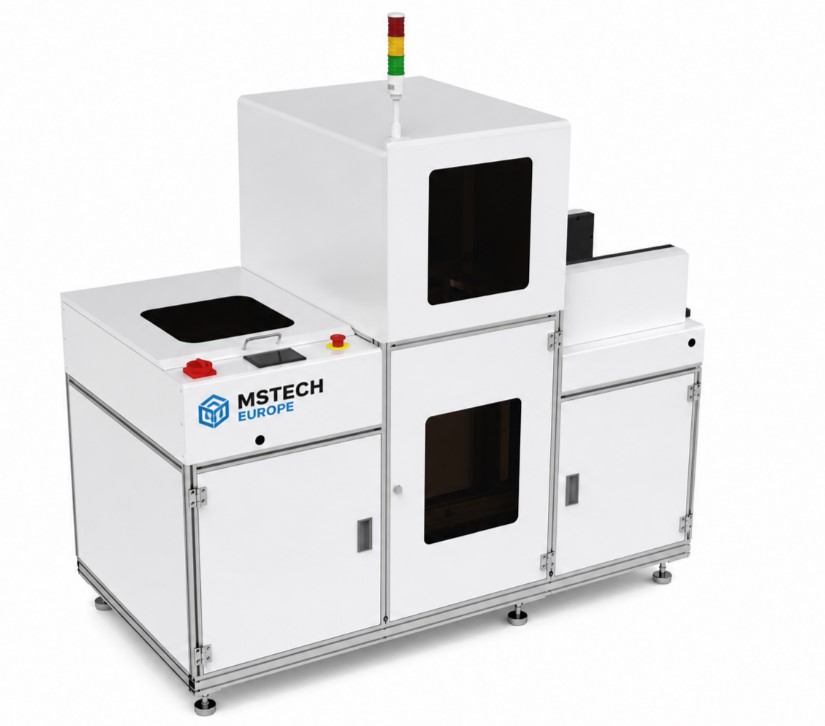

Classic-CLD-250

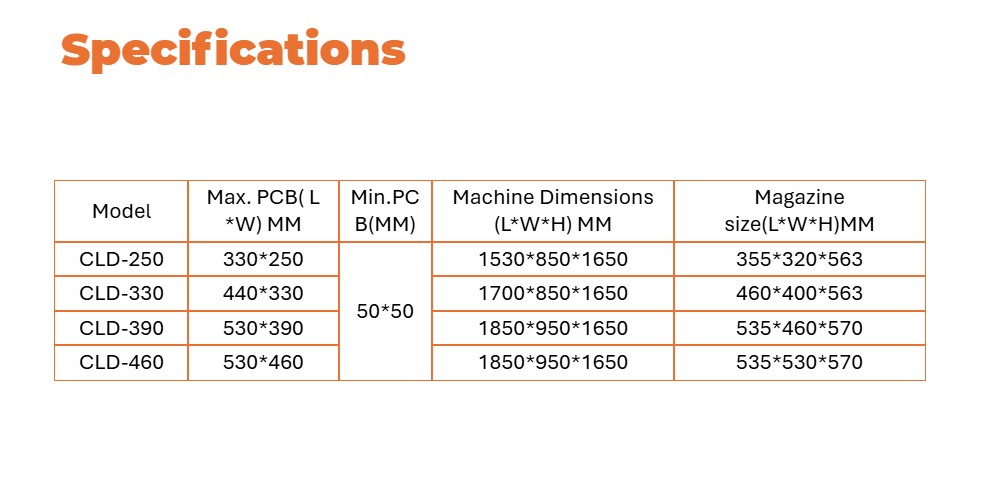

Single Magazine (mm) loader & destacker combined system; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 330x250; PCB Min. (mm): 50x50; Machine Size (mm): 1530x850x1650; Magazine (mm): 355x320x563

Application

This system is also designed with the capability of handling the bare boards & PCBA into the production line, a independent bare boards destacker is equipped together with the single magazine loader, working in-line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.
Features

• Panasonic PLC program control

• Loader & destacker working mode can be switched exchange.

• Selectable pitch settings

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine loading from the front of machine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• Ability to handle the bare boards by destacker.

• SMEMA compatible
