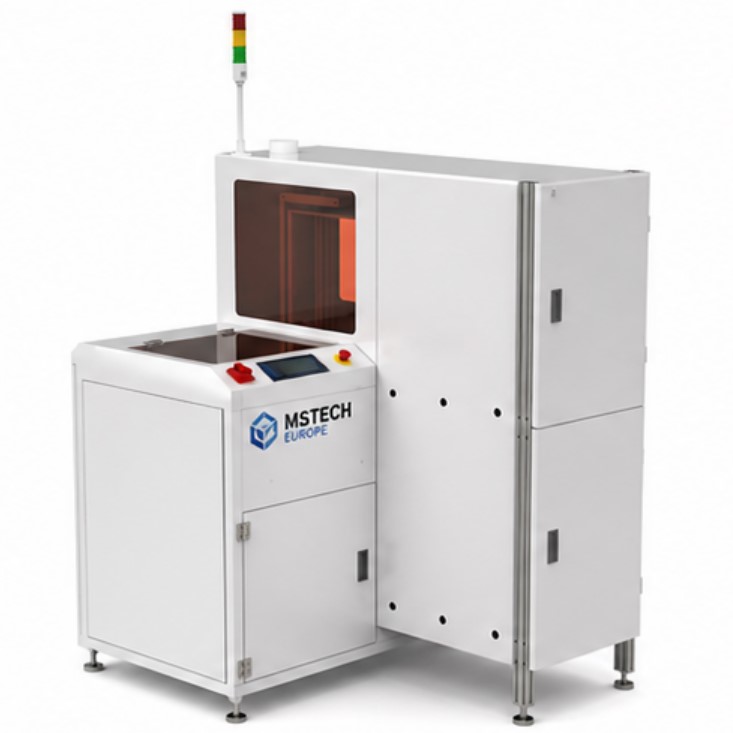

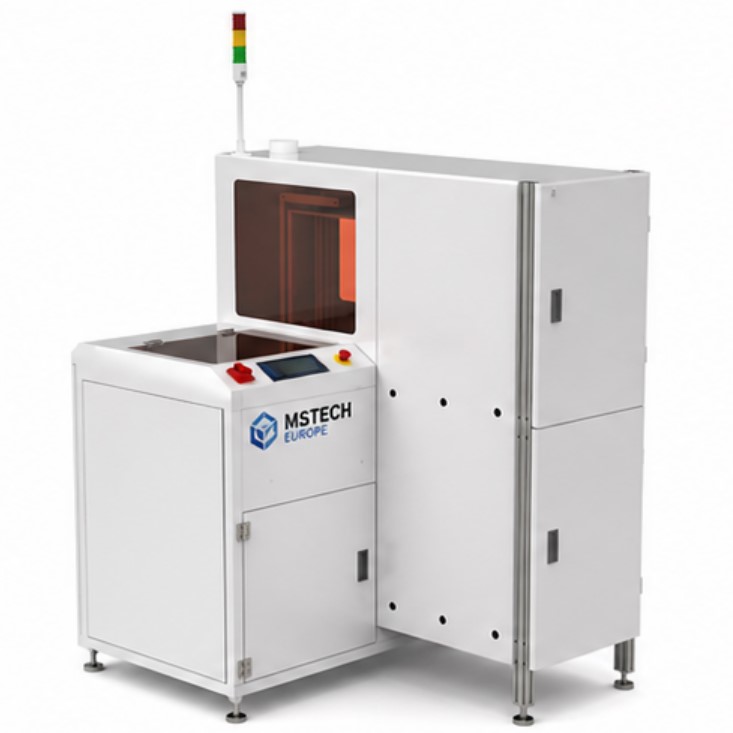

Coating Line Loader PCB Max(mm): 530x390

MSTECH Europe
Classic-CL-390

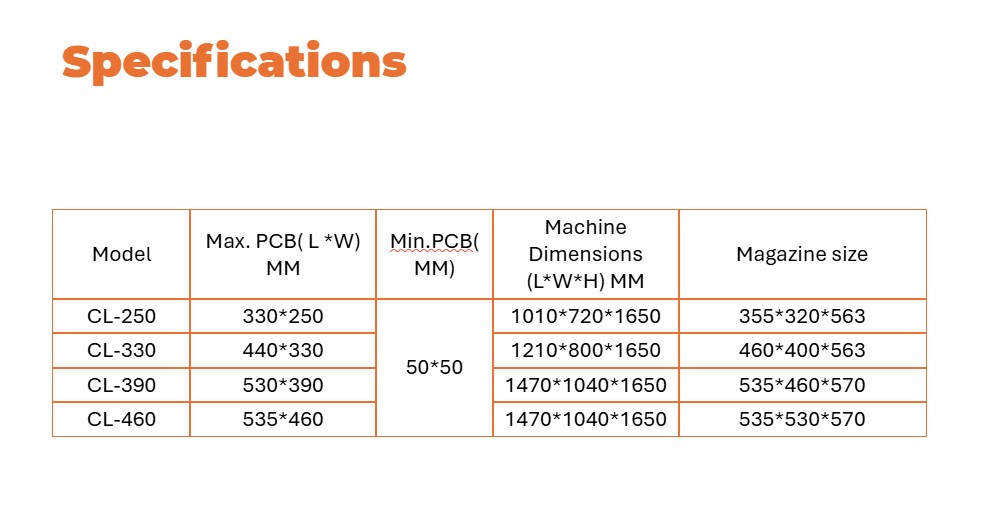

Multi Magazine (mm) loader system for coating line; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 530x390; PCB Min. (mm): 50x50; Machine Size (mm): 1800x950x1650; Magazine (mm): 535x460x570

Application:

This multi magazine unloader is design special for the coating line, all the machine will be with the seal cover and be equipped with the extraction for the vapors of the coating line.

1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines.

Features

• External air extraction stop alarm system.

• Full seal cover to enhance the safety friendly working environment in the coating line.

• Panasonic PLC program control

• Selectable pitch settings : 10mm to 80mm

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.

• SMEMA compatible
