Vertical Buffer PCB Max(mm): 500x460

MSTECH Europe

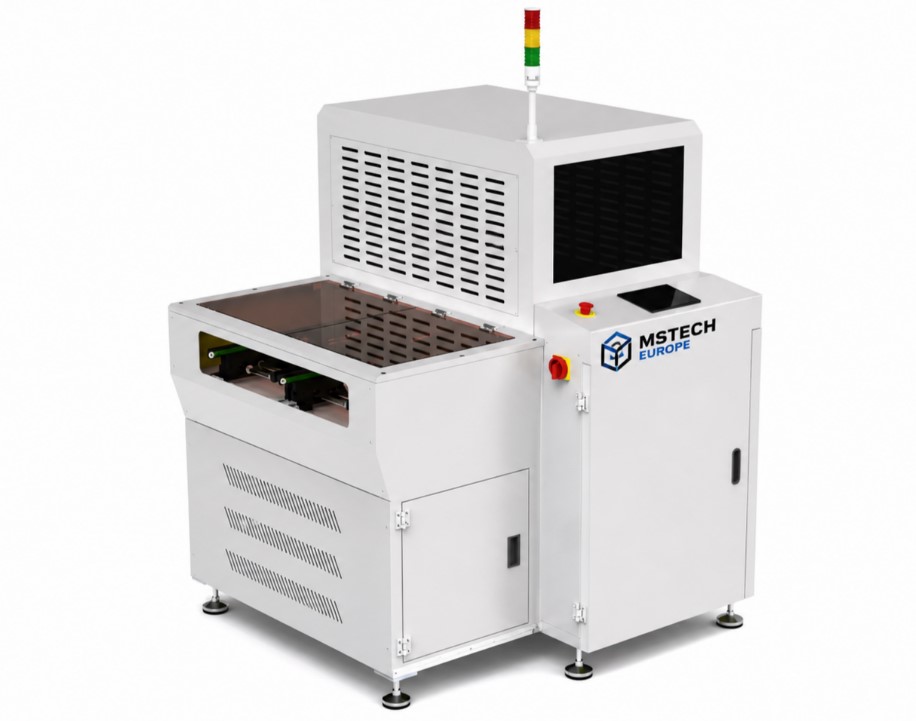

Classic-BUF-460 - 25P

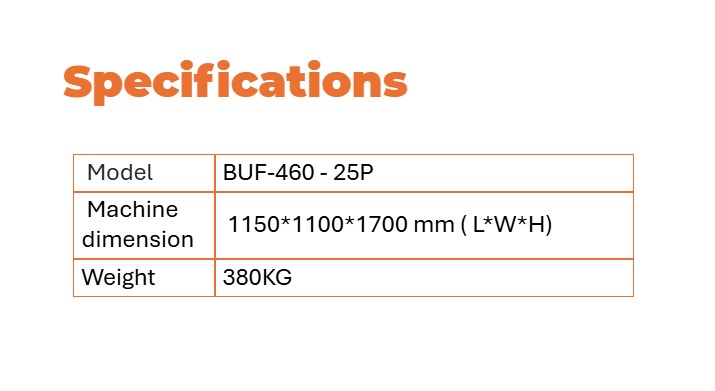

Vertical buffer, 25 PCS, without infeed conveyor; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 500x460; PCB Min. (mm): 50x50; Machine Size (mm): 750x1100x1700

Application:

This vertical buffer is designed to have the function as FIFO/ LIFO and by-pass functions, which can be located between SMT machines to improve the working efficiency by buffering.

This system is with the built-in magazine which has the special driving ability in each slot to transfer the boards to downstream system when the boards are called for. ( Built-in magazine is not exchangeable).

Features

• PCB buffer capacity: 20 PCS in each lane ( 40PCS at dual lane)

• Working mode:

FIFO( first in first out)

LIFO( last in first out)

By-pass mode

• Infeed conveyor as standard configuration

• Conveyor width adjustment: automatic adjust ( by software input the boards width information;

• Control method: PLC+ touch screen control+Taiwan servo motor

• Machine working language: English

• Threshold signal to protect the boards: Standard

• PCB transfer method: 4mm ESD Flat belt to handle PCB

• Magazine lifting system: precision servo motor system and servo driving system.

• Lifting platform with PCBs weights handling capacity: above 100kg

• Step pitch selectable: 1/2/3 pitch Step by software setting;



• PCB size available:

Dual lane mode

L 50 mm × W 50 mm ～ L 530 mm × W 375 mm

Single mode：

L 50 mm × W 50 mm ～ L 600 mm × W 510 mm

• R1 fixed, R2-R3-R4 moveable

• PCB weights: Max.2.0kg/PCS

• PCB thickness: Max.2.5mm, Min.0.6mm

• Indexing pitch: 30mm

• SMEMA signa

• PCB transfer flow direction: Left to right

• Conveyor width adjustment: motorized type

• Conveyor fixed rail: Front rail

• Conveyor transfer heights: 900mm+/-50mm

• Conveyor speed: 10m/min adjustable

• Conveyor rail material: aluminum with special hardness treatment for long time usage and the strong PCB holding ability;

• Machine working state display: LED signal tower + audible alarm

• Robust lead screw rod and guide line rod to guarantee the heavy duty loading;

• Safety standard: CE certificates

• Safety cover with interlock functions

• Power: AC110V,50/60 HZ, 1 phase

• Air Pressure: 4-5kgf/cm2

• Machine communication: SMEMA interface

• Power supply: 220V,single phase,50/60Hz
