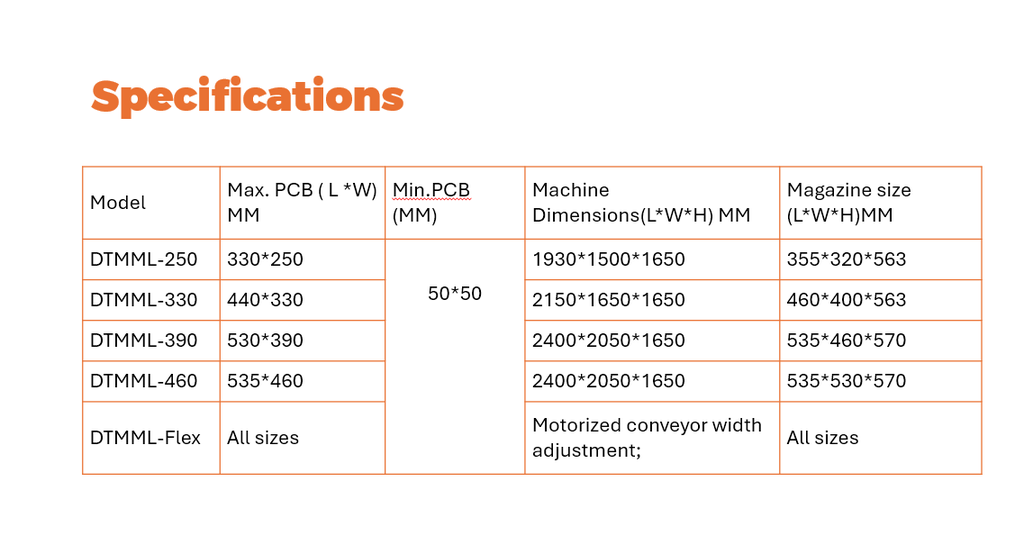

Dual Track Loader PCB Max(mm): 535x460

MSTECH Europe
Classic-DTMML-460

Dual track multi Magazine (mm) loader; Motorized width adjustment; NG/OK reject functions; PCB Max(mm): 535x460; PCB
Min. (mm): 50x50; Magazine (mm): 535x530x570

Application:

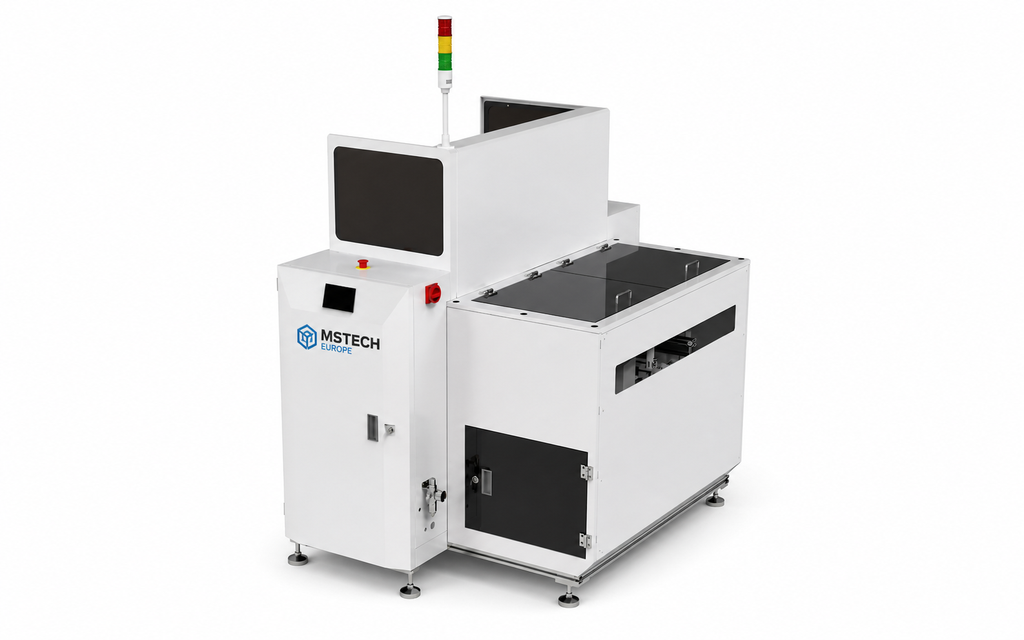

This system is designed to load the PCBs into the SMT line, with the capability to handle the dual lane transportation functions, it can be selected by the customer for the different working mode.

The machine is with a special pusher design, and allowed a very impact dimensions and helped the customer to save the line length.


1.Used in SMT line front, sends PCB from magazine to downstream machine.
2.The unit loads your production line automatically by pushing PCB’s out of the magazine onto the conveyor of the downstream machines. Full magazines are inserted at an ergonomic low level.
3.Located at the first stage of SMT line, this unit transfers PCBs stacked in a magazine rack to the downstream machine using a pneumatic pusher one by one.

Features

• Efficient management of Good & No good boards from upstream system

• Dual lane high speed unloader function are selectable in the software

• Multi magazine capability to handle total 6 magazines (Optional)

• Panasonic connect PLC program control

• Selectable pitch settings from 10mm to 80mm;

• Tower-light display for machines working status.

• Flexible platform to suit standard magazines

• Exchangeable magazine from the rear of magazine

• Stepper motorized type pusher to enhance working stability

• Pusher position adjustable to Centre for the boards

• Use the friendly touch screen panel

• Magazine infeed and outfeed are automatically driving by motor on the platform.
