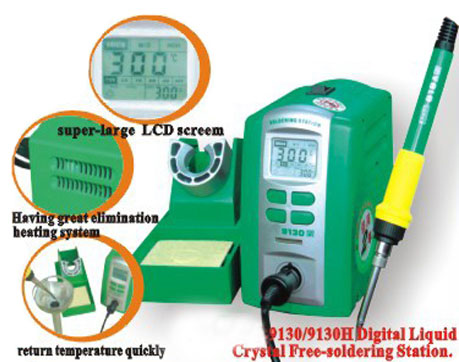

C-9130H Digital Liquid Crystal Lead-Free Soldering Station
Super-high sphere digital display, reverse light-source. double-temperature (set temperature & speed).3 different temperature range(high, middle, low)
Automatic-sleeping time, Save power, set 1 minute, 5,10,20,30 minutes for sleeping time, redo it rebacks temperature you set quickly. Turn off by itself. Tip is free for 30 minutes. It is off .when you redo it, please turn on again.
Management temperature by a card, save power, repair numerical, test fault by min/max, adjustment power by welding point.
Min temperature set/ Exothermic Material Core short-circuit protection system, super-release heating system in order to save equipment stability.
Removable eliminate design, adopt PCB multi-faceted circuit-board, innovation painting.
Part No.
|
C- 9130
|
C- 9130H
|
|||||
Power Consumption
|
80W
|
100W
|
|||||
TemperatureRange
|
200 – 480?
|
||||||
Temperature Stability
|
+/-5? (Permission Temperature Range)
|
||||||
Output Voltage
|
27V
|
||||||
Dimension
|
80(W)x 130(H)x 131(D)mm
|
||||||
Weight
|
1.2kg
|
||||||
Soldering Iron
|
|||||||
Part No.
|
919
|
919HA
|
|||||
Power Consumption
|
75W
|
95W
|
|||||
Tip to Ground Resistance
|
Under 2Ω
|
||||||
Tip to Ground Potential
|
Under 2Mv
|
||||||
Tip Length
|
57.5mm
|
||||||
Tip Weight
|
10g( C9 Tip)
|
10g( C9L Tip)
|
|||||
Cord Assembly
|
1.2m
|
||||||
Exothermic Material Core
|
A1365
|
A1395
|
